Name

FINDUS

Subject

42" infrared touch monitor and photo sensor with magic mirror.

File


Made of 42" high brightness as 700nit woth infrared touch screen.
Output the signal as high(5V) or law(GND) by photo sensor.
Including controller for photo sensor and adjust the reversed signal and delayed timing.

- Display : 1920X1080(FHD)
- OutLine Dimensions : 982.4 X 603.3 X 95.0mm
- Brightness : 700Nit (Without Glass or Magic mirror)
- Touch Screen : IR type (Driver Free optional) with USB.
- Video input : VGA/CVBS/Y,Pb,Pr/HDMI/USB/RF-ATSC(D-DVB-T)
- Speaker : 2X5W 8Ohm
- Including Photo sensor with the controller(Reverse/Delay)
- OSD : Controlled by remote controller & 7-buttons.

If customer want to use PC function only, the video input is changed to VGA/DVI with 6-OSD buttons.

- Touch screen, Touch monitor, Panel mount monitor, Industrial monitor, SAW touch screen, Open frame, Large size touch screen and foil, LCD monitor, Infrared touch, Magic mirror.

DATE: 2013.12.18 - 13:48

LAST UPDATE: 2014.07.30 - 15:13

F150OT-D-S01

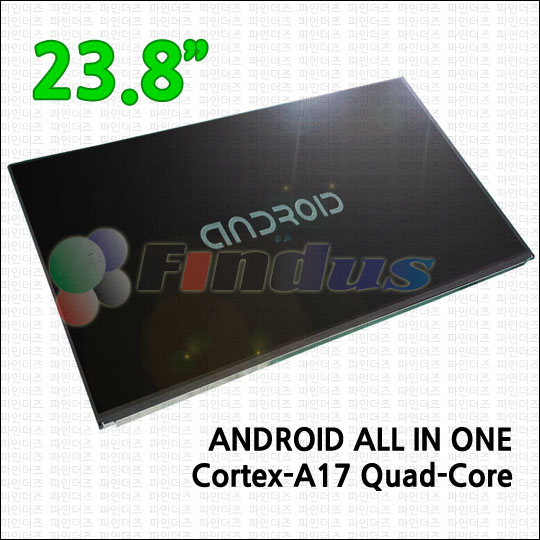

.23.8" Andriod All in One System Model F238OT-I-LL1 is a high-performance all-in-one open frame monitor equipped with a CPU Cortex-A17 quad-core, DDR 2G, ROM 16G and a projected capacitive touch screen based on the ROCKCHIP RK3288 hi...


Hit : 15418

.10.4" High Brightness Sunlight Readable 1000cd/m2 Vandal Proof PCAP Touch Open Frame Monitor Model F104OT-H-EL2 is a TFT LCD touch open frame monitor. This product is used to be mounted a some fixture like a door, cabinets and etc.. All functions can be operated by OSD buttons of rear side. T...


Hit : 2925

.46" 2500cd/㎡ HIGH BRIGHTNESS SUNLIGHT READABLE MONITOR This monitor is a sunlight readable with high brightness as 2500 cd/㎡ that is usable under sunlight.User can install for landscape and portrait with ear-lugs that has provided with monitor.We c...


Hit : 10945

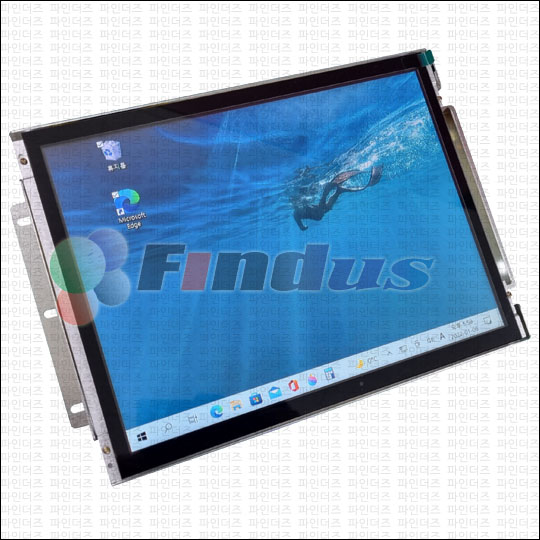

.10.4" Projected Capacitive Open Frame Touch Monitor This FINDUS’s model is a TFT LCD touch open frame monitor. This product is used to be mounted a some fixture like a door, cabinets and etc.. All functions can be operated by OSD buttons of rear side. ...


Hit : 15721

.F215OT-D-ST1 - 21.5" Projected Capacitive Open Frame Touch Monitor The FINDUS’s model F215OT-D-ST1 is a TFT LCD touch open frame monitor. This product is used to be mounted a some fixture like a door, cabinets and etc.. All functions can be operated by OSD buttons of...


Hit : 16105

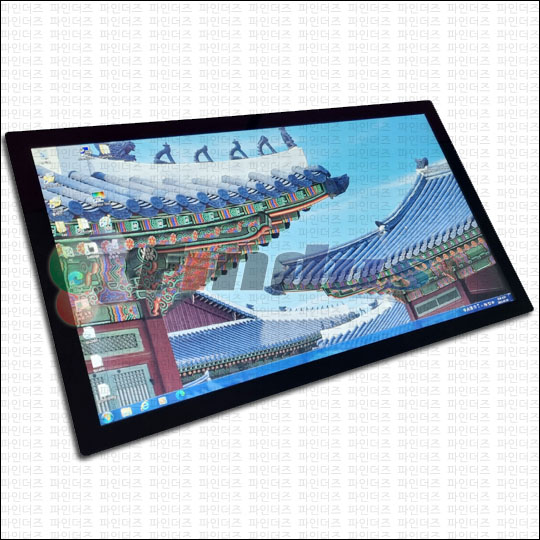

.F320OT-H-S12 - 32" Projected Capacitive Open Frame Touch Monitor Model F320OT-H-S12 is an industrial open frame touch monitor including the latest PCAP(Projected Capacitive) touch screen.This model supports 10 point multi-touch with best durability & compatibility ...


Hit : 16180

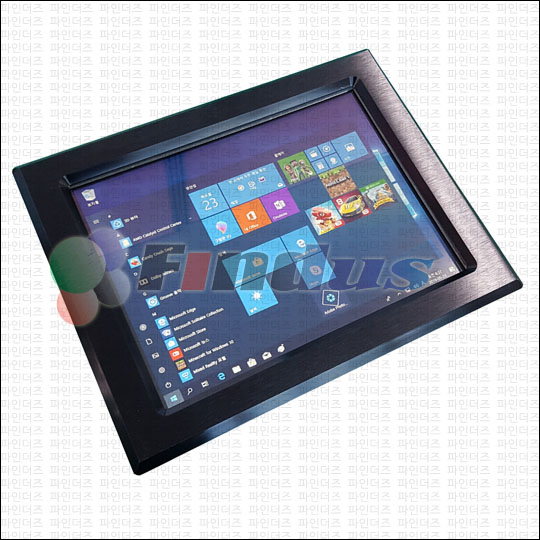

.FI104PT-D-X02 - 10.4" Projected Capacitive Panel Mount Touch Monitor Model FI104PT-D-X02 is an industrial panel mounting type touch monitor including the latest PCAP(Projected Capacitive) touch screen.The front cover is made of anodized aluminum by black color.This mod...


Hit : 13452

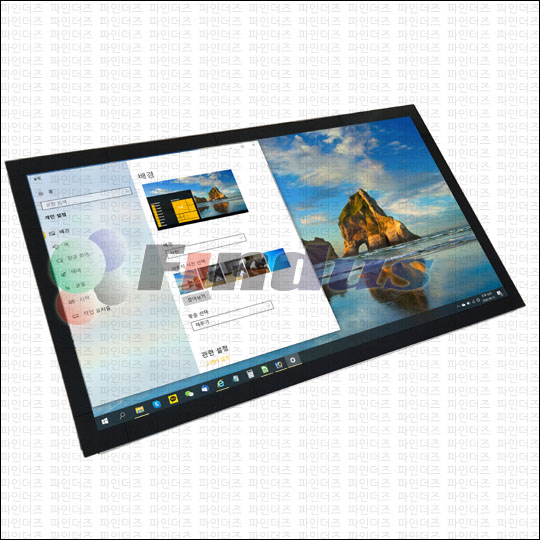

.F270OT-H-S02 - 27" Projected Capacitive Open Frame Touch Monitor Model F270OT-H-S02 is an industrial open frame touch monitor including the latest PCAP(Projected Capacitive) touch screen.This model supports 10 point multi-touch with best durability & compatibility ...
