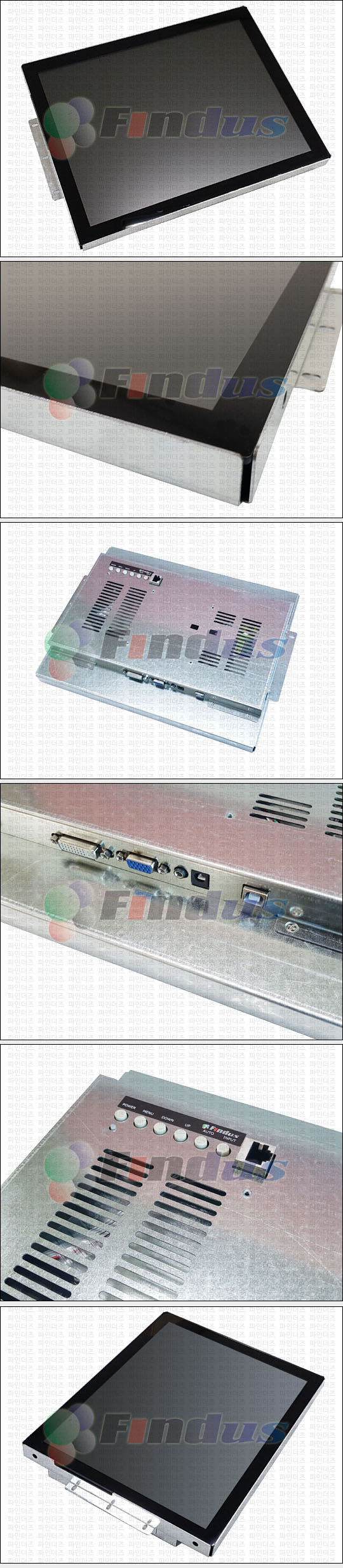

F150OT-D-S02 - 15" Projected Capacitive Open Frame Touch Monitor

File


Model F150OT-D-S02 is an industrial open frame touch monitor including the latest PCAP(Projected Capacitive) touch screen.
This model supports 10 point multi-touch with best durability & compatibility for OS.
User can extends the OSD function with a normal LAN cable through the REMOTE OSD port (RJ45) on the back cover of rear side.
Also this model is a compatible dimension with our existing model F150OT-D-S01, so the customer of F150OT-D-S01 can changes to this PCAP model without any modify of their cabinet.

MODEL NAME : F150OT-D-S02

1) Display size : 15” diagonal
2) Resolution : 1024 X RGB X 768 dots.
3) Brightness : 350 cd/㎡ (Without Touch screen)
4) Contrast ratio : 700 : 1
5) Color depth : 8-bit 16.2M colors
6) Video input : Analog RGB (1024X768 @60Hz) / DVI
7) Power : DC12V (more than 2.5A)
8) Touch screen : Projected Capacitive touch screen.
9) Type of touch controller : USB type
10) Dimension (WXHXD) : 343.0 X 267.0 X 46.1mm (Without Ear-lugs) / 366.6 X 267.0 X 46.1mm (With Ear-lugs)
11) NET Weight : 3.5KGS (With Ear-lugs) / Gross Weight : 4.7KGS (45.5 X 35.0 X 10.0cm)

Similar Models
- F150OT-D-S12 (Compatible model)
- F150OT-H-S12 (HDMI/VGA model)
