Name   FINDUS (http://www.findus.kr http://www.findus.kr)
Subject   F150OT-D-S01
File
00total_150ot-d-s01-e.jpg [143 KB] Download 00total_150ot-d-s01-e.jpg (143 KB) - Download : 84

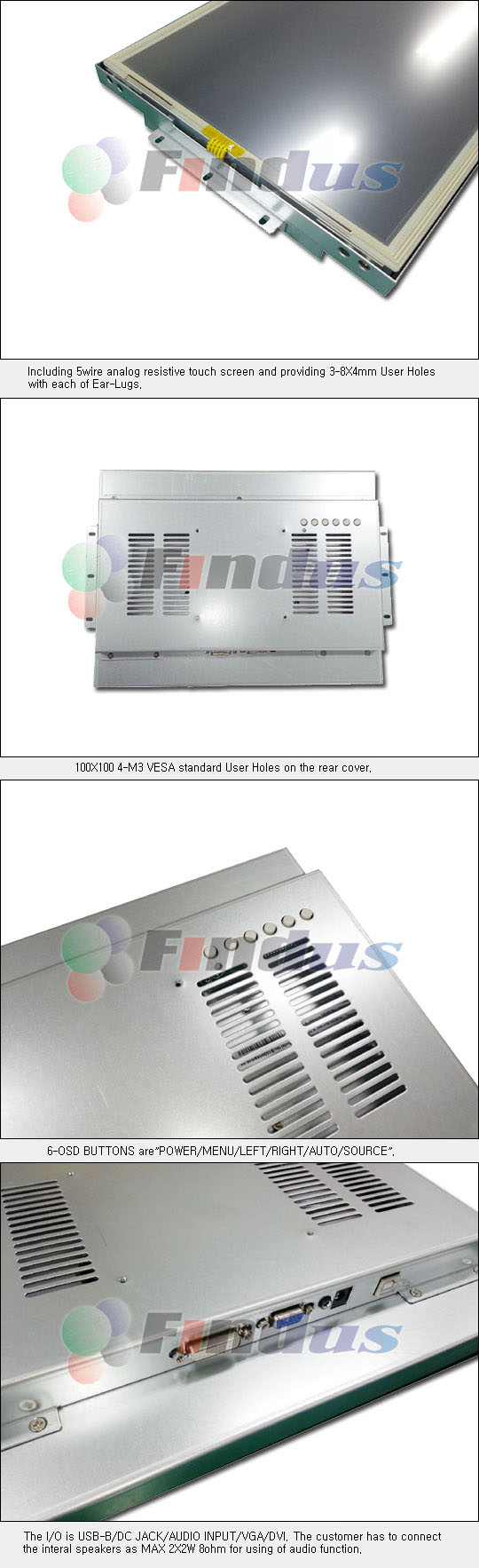

This model is a one of open frame monitor with 15" 4:3 ratio and including touch screen of 5-wire analog resistive type with USB controller.
Generally the BL of this model is LED, but we can provide the CCFL at customer's request

Specifications
Outline Dimension : 337.4mm(H) X 258.0mm(V) X 46.1mm(D)
Active area : 304.5mm(H) X 228.5mm(V)
Bezel open : 307.4mm(H) X 231.3mm(V)
Backlight : CCFL or LED
Resolution : 1024 X 768
Brightness : 300 NIT (Without T/P)
Contrast ratio : 1000 : 1
Color depth : 8-bit
Video input : VGA(1024X768 60Hz)/DVI
Power input : DC12V
Touch screen : 5wire Resistive Touch Screen
Touch control : USB
MODEL F150OP-D-S01 of similarity :  Without Touch screen

- Touch screen, Touch monitor, Panel mount monitor, Industrial monitor, SAW touch screen, Open frame, Large size touch screen and foil, LCD monitor, Infrared touch, Magic mirror.

Send this message to email View Printable version
DATE: 2014.07.08 - 13:51
LAST UPDATE: 2021.01.28 - 22:19

 Prev message FI190PT-D-C3
 Next message 42" infrared touch monitor and photo sensor with magic mirror.
