This product is compatible with all of our products featuring a capacitive touchscreen and a resolution of 1920x1080.
It is available in the model name T-I-566*, ranging from panel-mount models to open-frame and custom-made products.
It supports screen mirroring for Android/iOS devices (license option) and allows for the connection of external devices via HDMI 2K input.
|
|

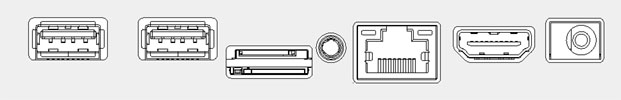

Function&Interface
|
Detailed
Description
|
|
CPU
|
RK3566
Cortex-A17 quad-core, up to 1.8GHz
|
|
DDR
|
LPDDR-III
2GB (4GB optional)
|
|
STORAGE
|
The
default comes with an 16GB EMMC NAND chip that can scale up to
128GB
|
|
HDMI
INPUT
|
HDMI 2K 1080P@60Hz
|
|
Amplifier
output
|
8
Ohm 5W Dual Audio Amplifier Output (Optional)
|
|
USB
Interface
|
1 each USB3.0 and USB2.0 (4-Extra USB2.0 Optional)
|
|
Serial
Port
|
4
TTL/RS-232 compatible (Optional)
|
|
Micro
SD Card
|
Self-elastic
micro SD card socket, up to 128GB capacity
|
|
WiFi
|
Built-in
high performance SDIO interface WiFi module, support IEEE 802.11
b/g/n
|
|
Bluetooth
|
Support
for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
|
|
Ethernet
|
10/100M
Adaptive Ethernet RJ45 connector
|
|
Real
Time Clock
|
Ultra-low-power
RTC circuit (CR1220 battery) with timer and alarm functionalities
|
|
LED
Indicator
|
Green
LED indicator for running (Optional)
|
|
Buttons
|
Recovery
mode button and power switch button(Optional)
|
|
PW/Reset
|
One-key
power switch and reset pin header(Optional)
|
|
DC
Input
|
Supports
9~15V wide voltage DC power input
|
|
Ambient
Requirement
|
Working
temperature 0°~70°, working humidity 0%~95% (non-condensing)
|
|
Android
Version
|
Recommended Android 11
|

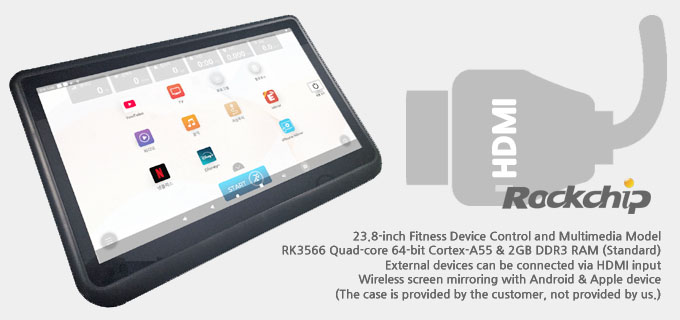

The ROCKCHIP RK3566 is based on a high-performance processor platform. The RK3566 SOC chip integrates a Cortex-A55 quad-core 64-bit processor and an ARM G52 2EE GPU, providing outstanding performance supporting up to 1.6GHz, 2D/3D graphics processing capabilities, and Full HD video capture capabilities.
It offers external device connectivity via an HDMI input and allows for wireless screen mirroring of Android and iOS devices via the ESHARE APP (license option), making it suitable for presentations and media device usage.

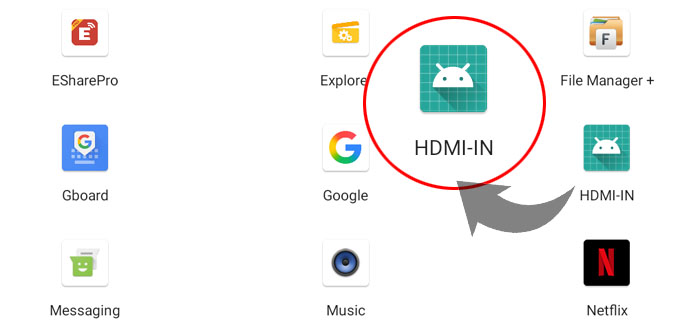

**You can connect external devices via HDMI-IN.

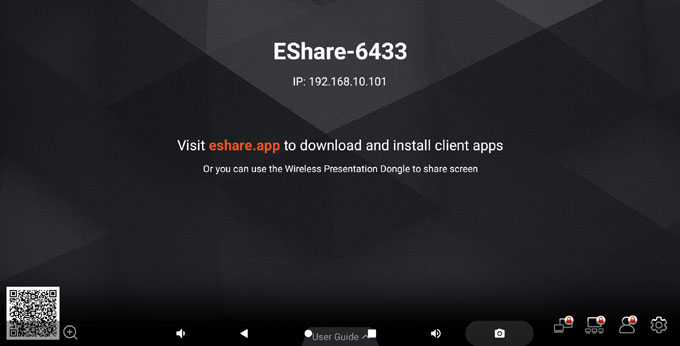

**You can wirelessly transmit content from external devices via the ESHARE app. You can easily share your screen by streaming OTT services such as YouTube and Netflix.
|
