- 15"  &  19"

    - 안드로이드 올인원

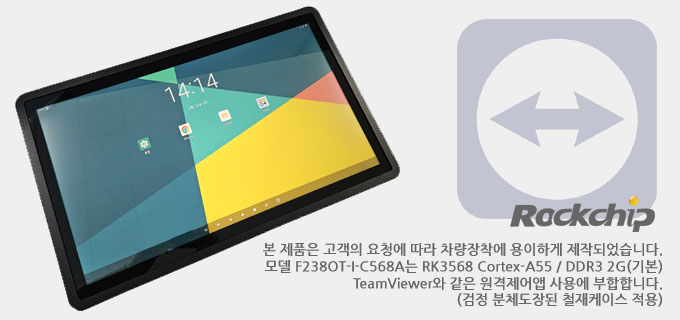

본제품은 정전용량 터치스크린을 채용하고 있는 1920X1080 해상도의 모든 당사제품에 적용이 가능합니다.

패널마운트 모델부터 오픈프레임, 커스텀메이드 제품까지 모델명 T-I-568* 형태로 제공됩니다.

TeamViewer와 같은 원격제어앱 사용에 부합하며 Dual-Band WIFI(옵션)가 제공됩니다.

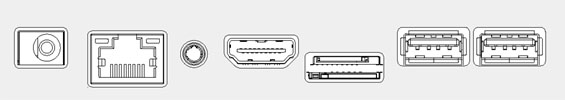

Function&Interface

Detailed Description

CPU

RK3568 Cortex-A17 quad-core, up to 2.0GHz

DDR

LPDDR-III 2GB (4GB optional)

STORAGE

The default comes with an 16GB EMMC NAND chip that can scale up to 128GB

HDMI OUTPUT

HDMI2.0 interface,with a maximum support resolution of 3840×2160@60Hz

Amplifier output

MAX 8 Ohm 5W Dual Audio Amplifier Output (Optional)

USB Interface

2-USB3.0 (4-Extra USB2.0 Optional)

Serial Port

4 -TTL/RS-232 compatible (Optional)

Micro SD Card

Self-elastic micro SD card socket, up to 128GB capacity

WiFi

Built-in high performance SDIO interface WiFi module, support IEEE 802.11 b/g/n

Bluetooth

Support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0

Ethernet

10/100M Adaptive Ethernet RJ45 connector

Real Time Clock

Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities

LED Indicator

Green LED indicator for running (Optional)

Buttons

Recovery mode button and power switch button(Optional)

PW/Reset

One-key power switch and reset pin header(Optional)

DC Input

Supports 9~15V wide voltage DC power input

Ambient Requirement

Working temperature 0°~70°, working humidity 0%~95% (non-condensing)

Android Version

Recommended Android 11

* 대략적인 사양과 관련하여 상담/문의 하시겠습니까 ?
